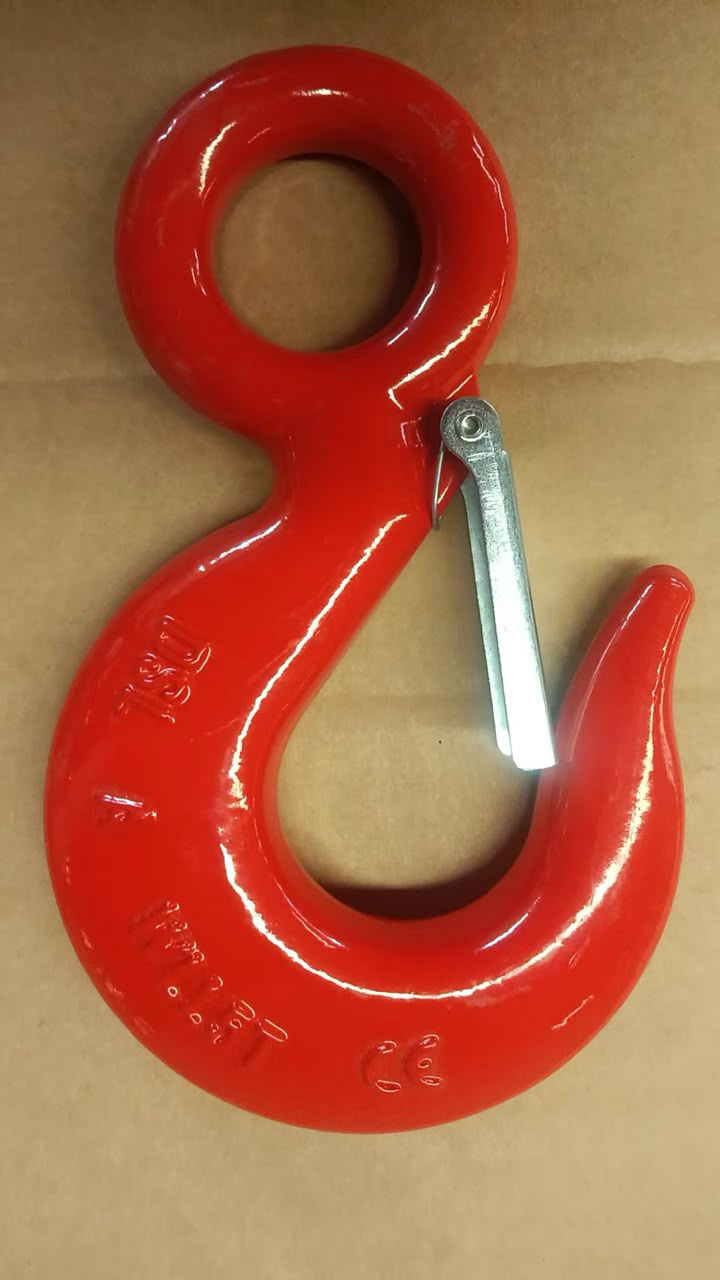

320A Alloy Eye Hoist Hooks (2 Tonne to 21 Tonne)

Engineered for critical overhead lifting and rigging applications, the 320A alloy steel eye hook is an industry-standard load-bearing component designed for seamless attachment to wire rope slings, chain slings, and crane hoist lines. Precision-forged for maximum tensile strength, it features a heavy-duty safety latch and integrated deformation indicators to ensure maximum site safety under heavy loads ranging from 2 tonnes up to 21 tonnes.

Key Features:

* Forged Alloy Steel Construction: Quenched and tempered alloy steel delivers high strength-to-weight performance with exceptional impact and fatigue resistance.

* Integrated Safety Latch: Spring-loaded heavy-duty latch securely retains wire rope or chain fittings inside the hook bowl, preventing accidental disengagement under slack conditions.

* Deformation & Angle Indicators: Features forged QUIC-CHECK® style markings (pop marks) that allow riggers to measure hook throat opening and side-load angles during routine visual inspection.

* Smooth Eye Connection: Precision-finished top eye hole provides a clean, burr-free anchor point for shackles, master links, and wire rope thimbles.

* International Safety Compliance: Fully heat-treated and proof-tested to comply with international rigging standards (ASME B30.10 / EN 1677).

Applications:

* Wire rope and synthetic web sling assembly terminations

* Overhead crane, mobile crane, and gantry hoist lifting hooks

* Heavy industrial rigging, machinery rigging, and construction site material handling

* Offshore, marine, and cargo loading operations

Specifications:

* Working Load Limit (WLL): 2t, 3.2t, 5.4t, 8t, 11.5t, 16t, and 21t options

* Material: Drop-Forged Alloy Steel

* Safety Factor: 4:1 Design Factor (Proof tested to 2.5 X WLL)

* Finish: High-visibility safety powder coating (Yellow / Red )
