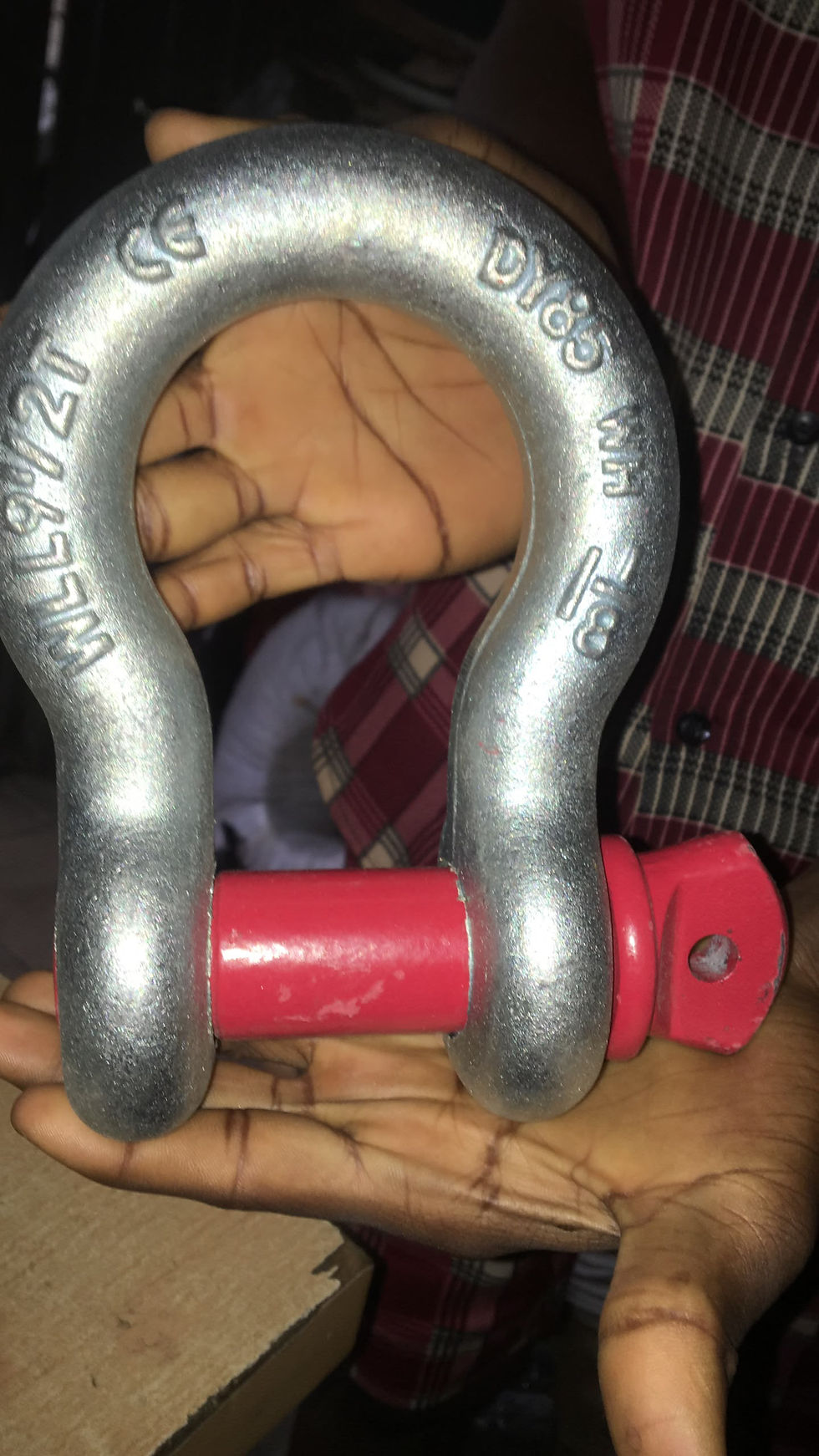

G209 Screw Pin Anchor Bow Shackles (0.5 Tonne to 25 Tonne)
Engineered for versatile, quick-connect rigging and overhead lifting applications, G209 bow shackles (anchor shackles) feature a threaded screw pin design that allows fast assembly and disassembly without requiring special tools. Designed to handle safe working loads from 0.5 tonnes up to 25 tonnes, the classic rounded bow shape permits multi-directional loading and comfortably accommodates multi-leg sling assemblies without pinching or binding.
Key Features:
 * Quick-Release Screw Pin: Threaded alloy pin screws directly into the shackle body, making it ideal for temporary rigging setups and frequent connection changes on site.
 * Rounded Bow Profile: Ample interior radius allows multi-leg wire rope, chain, or synthetic webbing slings to self-align under angle loads.
 * Drop-Forged High-Tensile Steel: Quenched and tempered body and pin constructed to absorb severe dynamic shock loads and resist structural fatigue.
 * Hot-Dip Galvanized Finish: Protective zinc coating delivers superior corrosion resistance against rust, moisture, and aggressive outdoor conditions.
 * International Safety Compliance: Meets or exceeds performance requirements of Federal Specification RR-C-271D Type IV, Class 2, Grade A and ASME B30.26.
Applications:
 * Temporary crane lifting assemblies and general site rigging
 * Connecting multi-leg wire rope or webbing slings to master links and crane hooks
 * Towing, vehicle recovery, and tie-down cargo securing
 * Construction, mining, and general industrial load handling
Specifications:
 * Capacity Range (WLL): 0.5t, 0.75t, 1t, 1.5t, 2t, 3.25t, 4.75t, 6.5t, 8.5t, 9.5t, 12t, 13.5t, 17t, and 25t
 * Pin Type: Threaded Screw Pin
 * Material: Forged Carbon Steel Body with Heat-Treated Alloy Steel Pin
 * Safety Factor: 6:1 Design Factor (Proof-tested to 2\times Working Load Limit)
